Free test Cisco CCIE 400-101 Exam questions and Answers
QUESTION 1

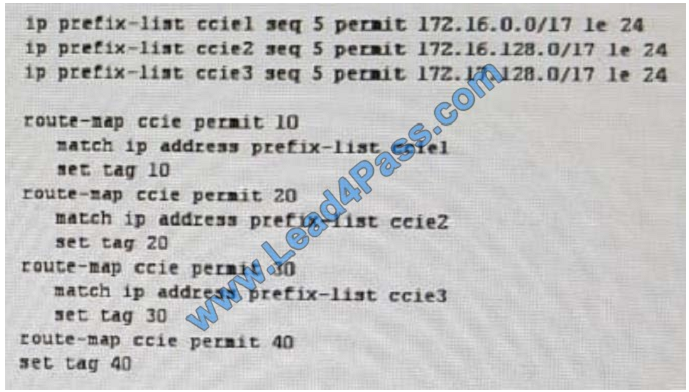

Refer to the exhibit. Which tag will be applied to 172.16.50.0/24 route?
A. 10
B. 20
C. 30
D. 40
Correct Answer: A
QUESTION 2
Which two statements about CEF polarization are true? (Choose two)
A. The AND operation is performed on the higher-order bits of the source and destination IP address
B. A single link is chosen for all flows
C. The AND operation is performed on the lower-order bits of the source and destination IP address
D. After the XOR process, the flow is processed in the distribution Layer with a different hashing algorithm
E. It can be prevented by alternating the hashing inputs
F. When enabled, it allows all links to be used efficiently for different traffic flows
Correct Answer: BE
QUESTION 3

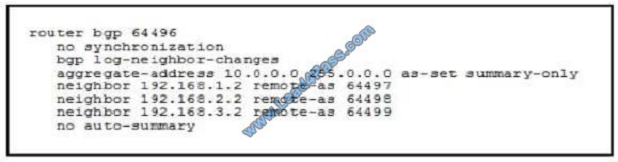

Refer to the exhibit. Which option describes the purpose of the asset argument of the aggregate-address command?
A. It provides an AS path in the aggregate advertisement that contains only the local AS number
B. It provides an AS path in the aggregate advertisement that includes the AS numbers of the component members
C. It provides a predefined AS path in the aggregate advertisement that is used to indicate an aggregate prefix
D. It provides a list of AS numbers to which the aggregate is advertised
Correct Answer: B
QUESTION 4

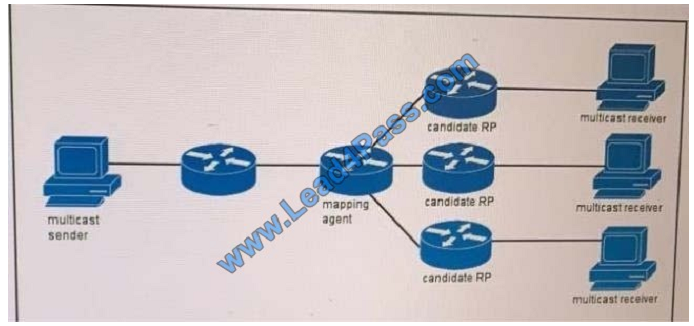

Refer to the exhibit. Which RP discovery mechanism is in use on this network?
A. Static RP
B. Anycast RP
C. BSR
D. Auto-RP
Correct Answer: D
QUESTION 5
Which prefix list matches and permits all RFC 1918 network 10.0.0.0 routes that have masks of /16 through /24?
A. ip prefix-list foo seq 10 permit 10.0.0.0/16 ge 15 le 25
B. ip prefix-list foo seq 10 permit 10.0.0.0/8 ge 15 le 25
C. ip prefix-list foo seq 10 permit 10.0.0.0/8 ge 16 le 24
D. ip prefix-list foo seq 10 permit 10.0.0.0/16 le 24
Correct Answer: C
QUESTION 6
Which are three valid message types for DHCPv6? (Choose three.)
A. Offer
B. Advertise
C. Request
D. Solicit
E. Discover
F. Leave
Correct Answer: BCD
QUESTION 7

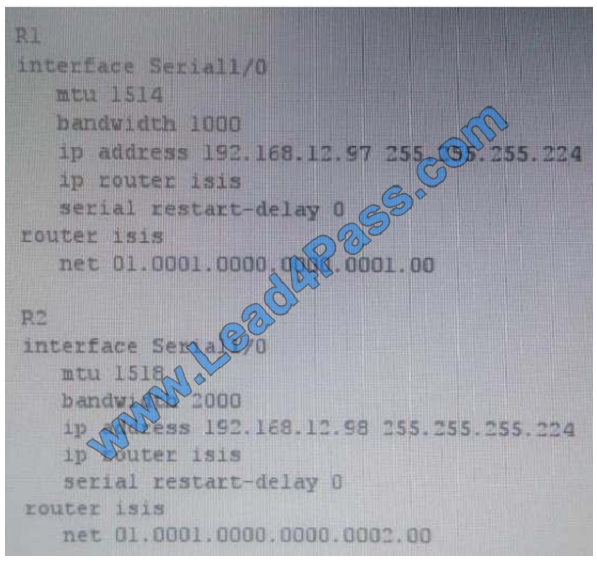

Refer to the exhibit. After you applied this configuration to R1 and R2, they failed to form an IS-IS adjacency.
Which reason for the problem is most likely true?
A. The network statements are mismatched
B. The IP subnets are mismatched
C. The bandwidth is mismatched
D. The MTUs are mismatched
Correct Answer: D
QUESTION 8

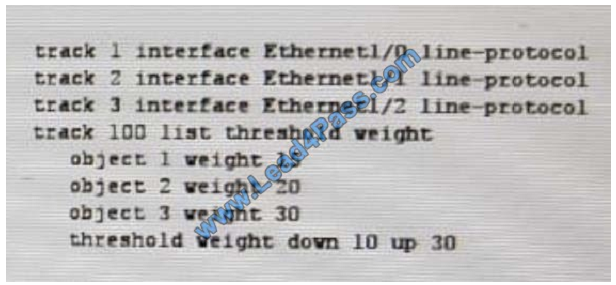

Refer to the exhibit. What are the two effects of the given configuration? (Choose two)
A. The aggregate weight of track object 100 is set to 30
B. The aggregate weight of track object 100 is set to 40
C. Track object 100 goes down if Ethernet1/2 goes down
D. Track object 100 stays up as long as both Ethernet 1/0 and Ethernet 1/ are up
E. Tack object 100 goes down if all three interfaces go down
F. Track object 100 goes down If Ethernet1/0 goes down
Correct Answer: DE
QUESTION 9
What is the correct binary equivalent of DSCP value AF41?
A. 001010
B. 100001
C. 101001
D. 100010
Correct Answer: D
QUESTION 10
Your network supports numerous devices that reside on different datalink segments within the same IP subnet. Which
feature can you implement to enable the devices to resolve IP-to-MAC address mappings?
A. ARP
B. Inverse ARP
C. Reverse ARP
D. Proxy ARP
Correct Answer: D
QUESTION 11
Which PIM multicast type requires IGMPv3 and operates without using rendezvous point messages?
A. PIM-DM
B. PIM-SM
C. SSM
D. BIDIR-PIM
Correct Answer: A
QUESTION 12
How is the TCAM on a Catalyst switch used when VRF-Ute is configured?
A. All configured VRFs share the Layer 3 TCAM.
B. Layer 3 TCAM is not used in VRF-Lite configurations
C. Each configured routing protocol receives its own Layer 3 TCAM
D. Each configured VRF receives its own Layer 3 TCAM
Correct Answer: A
QUESTION 13
Which two statements about BGP confederation architecture are true
A. The intraconfederation EBGP default TTL value between sub-ASes is 1
B. The AS_SET and AS_SEQ components help prevent loops inside a sub-AS
C. The ASN of a confederation is excluded from the AS_PATH path length calculation
D. The intraconfederation EBGP default TTL value between sub-ASes is 255
E. IBGP sessions inside a sub-AS have a default TTL of 1
Correct Answer: AC
